Audi E type koppelingsnaaf ZF 8HP55A 38 spline en bijpassende tandwielen

Productoverzicht
Key Specifications: Spline Design: 38 involute splines (12° pressure angle) with 0.8–1.2µm hardened surface finish for gear engagement Material: Case-hardened 20MnCr5 steel (58–62 HRC core, 850HV surface) Gear Match: Mated to planetary carrier with 0.02–0.05mm backlash tolerance Critical Functions: Transmits 320Nm in 2nd/4th/6th gears Oil passages for clutch cooling (flow rate: 4–6 L/min) Failure Modes: Spline fretting (if backlash exceeds 0.1mm) Lubrication starvation marks
Basiseigenschappen
Merknaam: AUDI
Modelnummer: 8HP-55A;0BK
Handelsgoederen
Minimale bestelhoeveelheid: 1
Prijs: 0-1000
Betalingsvoorwaarden: T/T
Productbeschrijving

Belangrijkste specificaties:

  1. Vertanding ontwerp: 38 involute vertandingen (12° drukkingshoek) met 0,8–1,2µm geharde oppervlakteafwerking voor tandwielingrijping

  2. Materiaal: Gehard 20MnCr5 staal (58–62 HRC kern, 850HV oppervlak)

  3. Tandwielkoppeling: Gepaard met planetaire drager met 0,02–0,05mm spelingtolerantie

  4. Kritieke functies:

    • Draagt 320Nm in 2e/4e/6e versnelling

    • Oliekanalen voor koeling van de koppeling (debiet: 4–6 L/min)

  5. Falen:

    • Vertandingsfretting (als de speling groter is dan 0,1 mm)

    • Smeringtekort bij >120°C

Opmerking: Geüpdatet van 8HP45 met 15% bredere vertandingsbasis voor 6000+ schakelcycli. Vereist door ZF goedgekeurde wrijvingsmodificerende additieven.

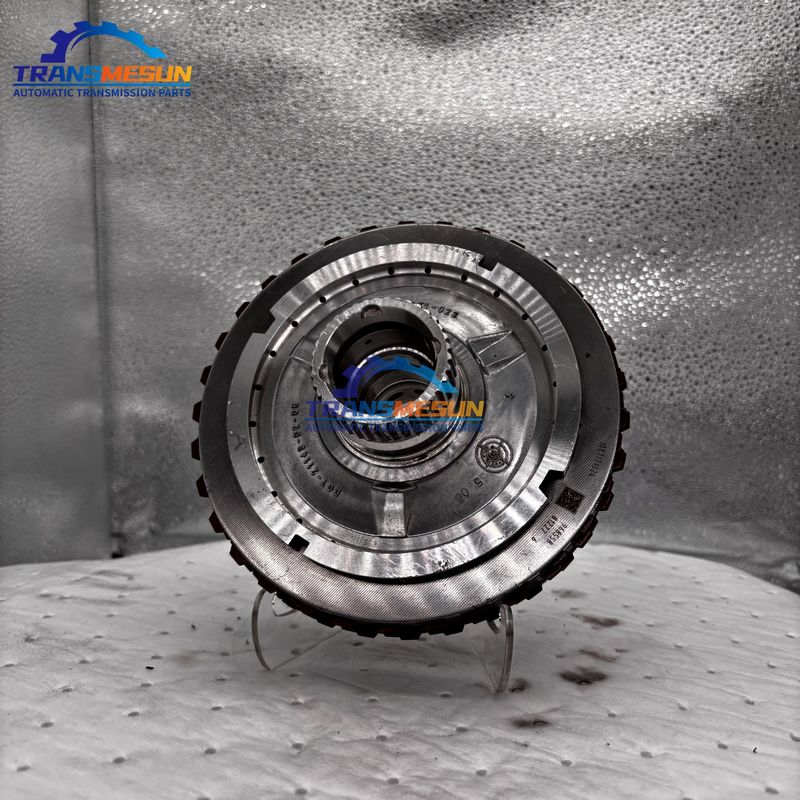

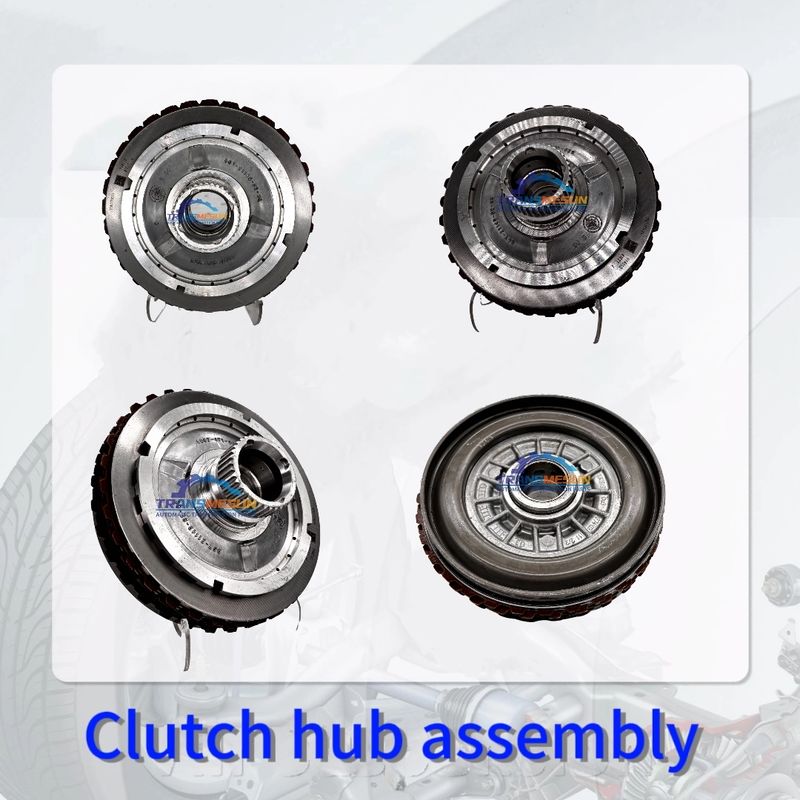

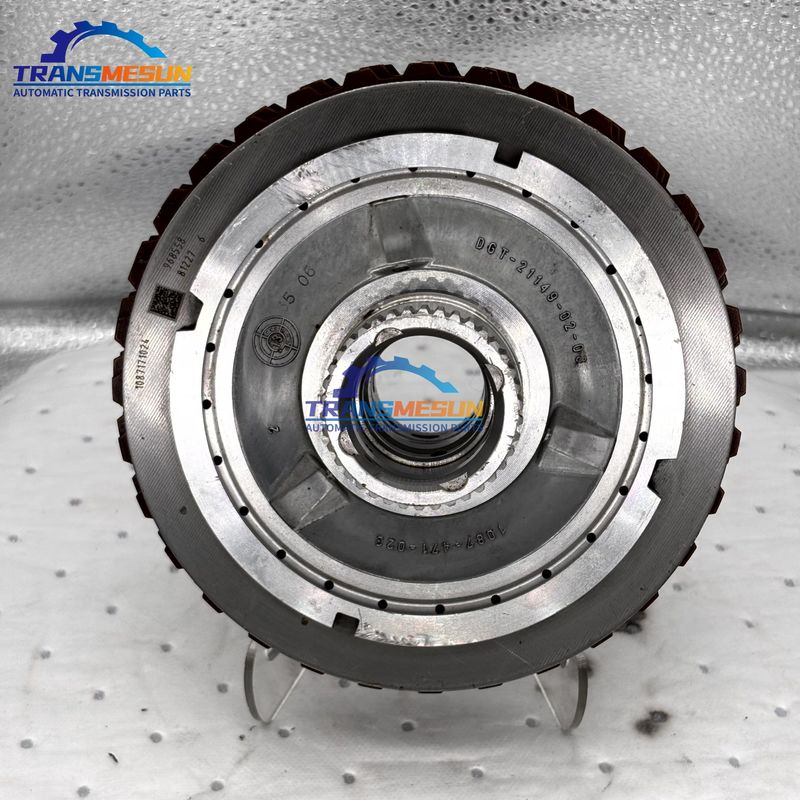

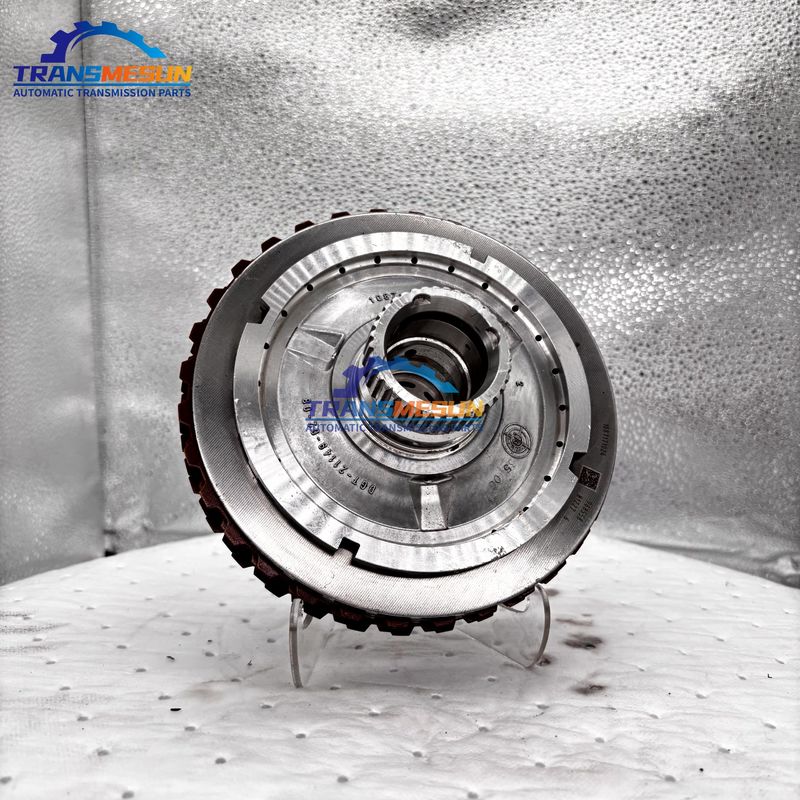

Audi E type koppelingsnaaf ZF 8HP55A 38 spline en bijpassende tandwielen 0

Audi E type koppelingsnaaf ZF 8HP55A 38 spline en bijpassende tandwielen 1

Audi E type koppelingsnaaf ZF 8HP55A 38 spline en bijpassende tandwielen 2



Productgegevens
Markeren:

Audi E type clutch hub assembly

,

ZF 8HP55A transmission gears

,

38 spline clutch hub

Year:: 2010-2017
MODEL:: 8HP-55A;0BK
SIZE:: 15X15X15CM
Brand:: Audi
Item Weight:: 3 kg
OENO: 1087471023
Applicable Brand:: 2016-2018 RS6
